Heatex Damper
Heatex Damper
Accessories

Dampers

Suitable for close/open bypass exchanger section in connection with a cross-flow plate heat exchanger.

Product Information

Overview

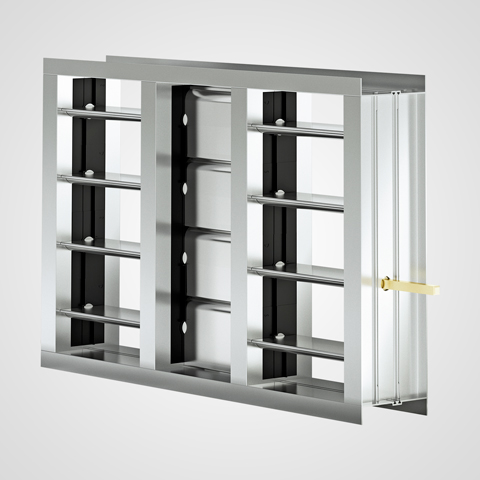

The damper has hidden wheels for better protection against filth and mechanical damage. As standard, the driving shaft is placed on the end of the middle wing on the by-pass side, or by even number of wings the upper wing next to the middle. The damper can upon request be supplied with driving shaft turned inward.

As an option, the damper can be supplied painted which is standard for exchangers with a painted framework. We also recommend painted dampers for installation in areas with heavily polluted air.

A special only inside-bypass damper is also available.

Tightness classification 2.

Technical Data



Frame height
  • 125 mm (4.92″)
Wing width/ division
  • 100 mm (3.94″)
Shaft square
  • □ 12 x 12 mm (0.47″ x 0.47″)
  • 50 – 200 mm (1.97″ – 7.87″) in length
Shaft round
  • Ø 12 mm (0.47″)
  • 120 mm (4.72″) in length
Maximum damper width
  • 2500 mm (98.4″) incl. bypass
Maximum damper unit area
  •  4 m2  (43.06 sq ft) (including bypass)
Maximum wing length
  • 1400 mm (55.1″)
Material
  • Profiles and damper wings in aluminum
  • Driving wheels in PP plastic with fiberglass
