Counter Flow Heat Exchangers

Model M

The Model M exchanger combines slim, effective counter flow design with the option of different airflow configurations.

Contact Heatex for Calculation
High Efficiency
High Efficiency

Even in a dry situation, it can come close to 90% (sensible) efficiency

Several Airflow Configurations
Several Airflow Configurations

Ensuring an optimal solution for virtually any application

Slim Design
Slim Design

For fitting in compact spaces

High Efficiency
High Efficiency

Even in a dry situation, it can come close to 90% (sensible) efficiency

Several Airflow Configurations
Several Airflow Configurations

Ensuring an optimal solution for virtually any application

Slim Design
Slim Design

For fitting in compact spaces

PRODUCT INFORMATION

Overview

Model M is a high-efficiency counterflow plate heat exchanger, specially designed for the demanding requirements of the telecommunications and electrical enclosure industry. Even in a dry situation, it can come close to 90% (sensible) efficiency.

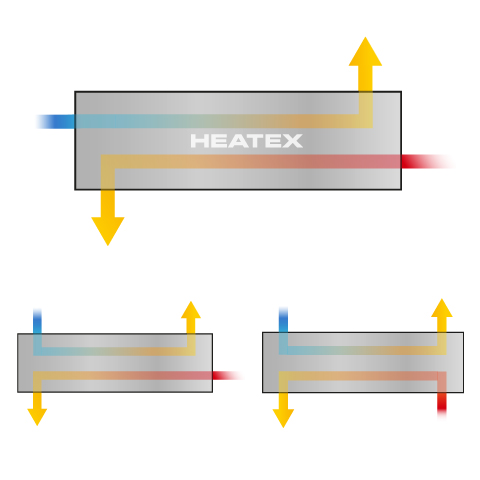

Especially for Model M, Heatex offers custom integration solutions for easy installation and faster end product delivery and may be built according to customers request with either double L-flow, double U-flow or L+U-flow configuration.

Technical Data

All sizes and options listed.

Width/ length
  • 100 – 600 mm
    (3.94″ – 23.62″)
Plate size
  • 95 / 140 / 190 / 235 mm
    (3.74″ / 5.51″ / 7.48″ / 9.28″)
Plate material
  • Aluminum
  • Epoxy
Case material
  •  Aluzinc
Max. allowed temperature and sealing
  • 90° C (190° F) – Silicone-free
Maximum leakage (in% )
  • 0.1 % of nominal airflow at 400 Pa (1.6″ WC)
Maximum allowed differential pressure
  • 700 Pa (2.81″ WC)
Documents
Marketing Material

OPTIONS

Epoxy plates
Epoxy Coated Plates

For improved corrosion protection in demanding applications such as in coastal environments, all Heatex aluminum heat exchangers are available with epoxy coated plates.
